Body Array

You are a senior creative-coding engineer, TouchDesigner migration specialist,
and exhibition playback systems engineer.

Your task is to port exactly three final TouchDesigner screen outputs into one
production-ready web application that can display three independent visuals on
three separate external monitors.

Do not create three unrelated repositories or three duplicated websites.
Create one maintainable web application with three independent routes:

- /screen/1
- /screen/2
- /screen/3

Also create:

- /control
- /status
- /calibrate/1
- /calibrate/2
- /calibrate/3

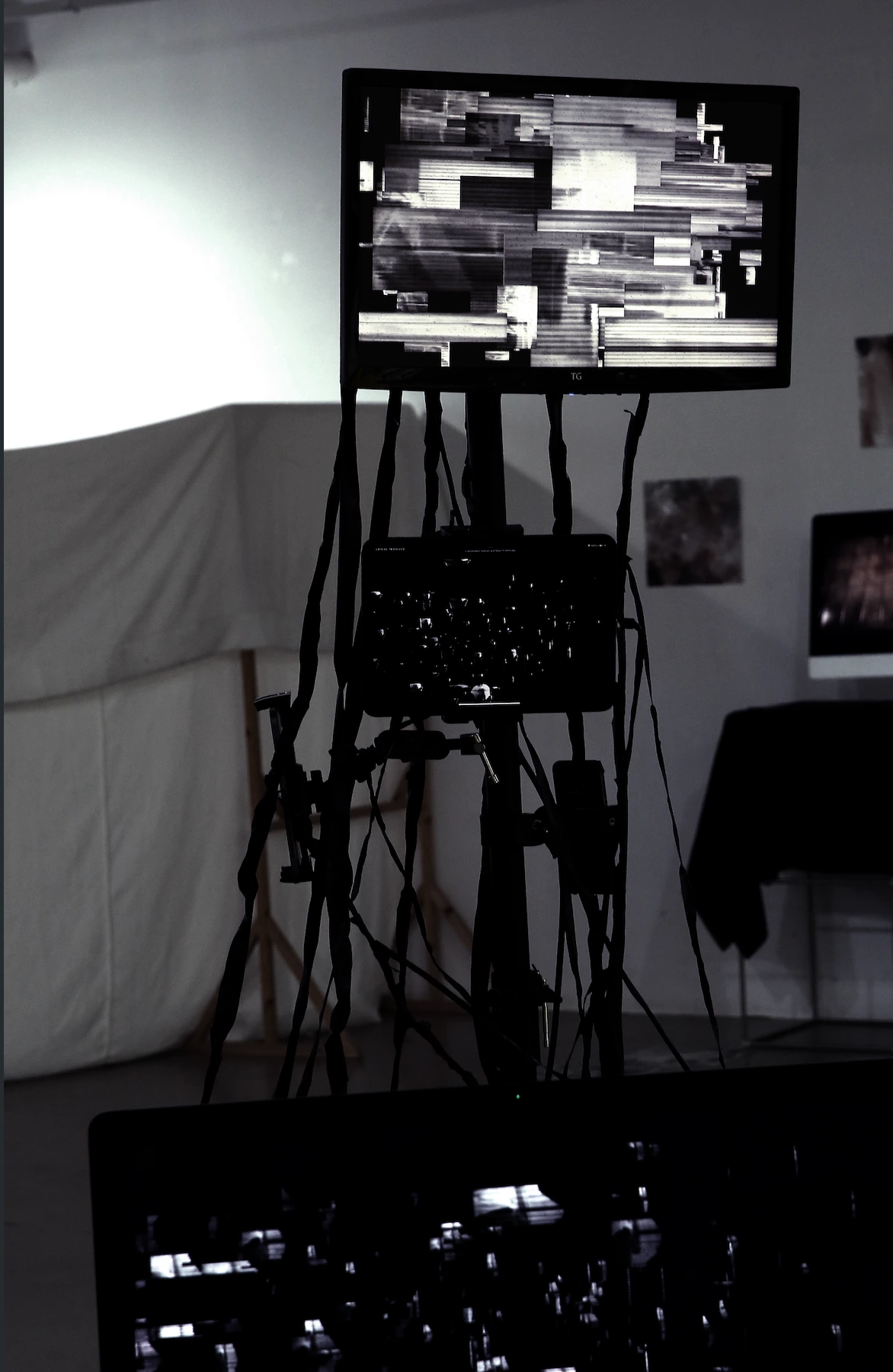

The intended exhibition hardware is:

1. LG Gram laptop
   - Runs the local production server.
   - Opens /screen/1 locally.
   - Connects to a TG Sambo TW4510 external monitor through HDMI.

2. iPad
   - Opens /screen/2.
   - Connects to another TG Sambo TW4510 through the appropriate HDMI adapter.
   - The iPad model may support either true external-display mode or only
     display mirroring, so the application must handle both 16:9 and 4:3
     browser viewports.

3. Samsung Galaxy S10e
   - Runs Samsung DeX.
   - Opens /screen/3.
   - Connects through a USB-C HDMI adapter or PD-enabled HDMI hub to another
     TG Sambo TW4510.

The target monitors are Full HD displays. Use a default design coordinate
system of 1920 × 1080 for landscape screens. Allow any individual screen to be
configured as 1080 × 1920 when physically mounted in portrait orientation.

IMPORTANT REALITY

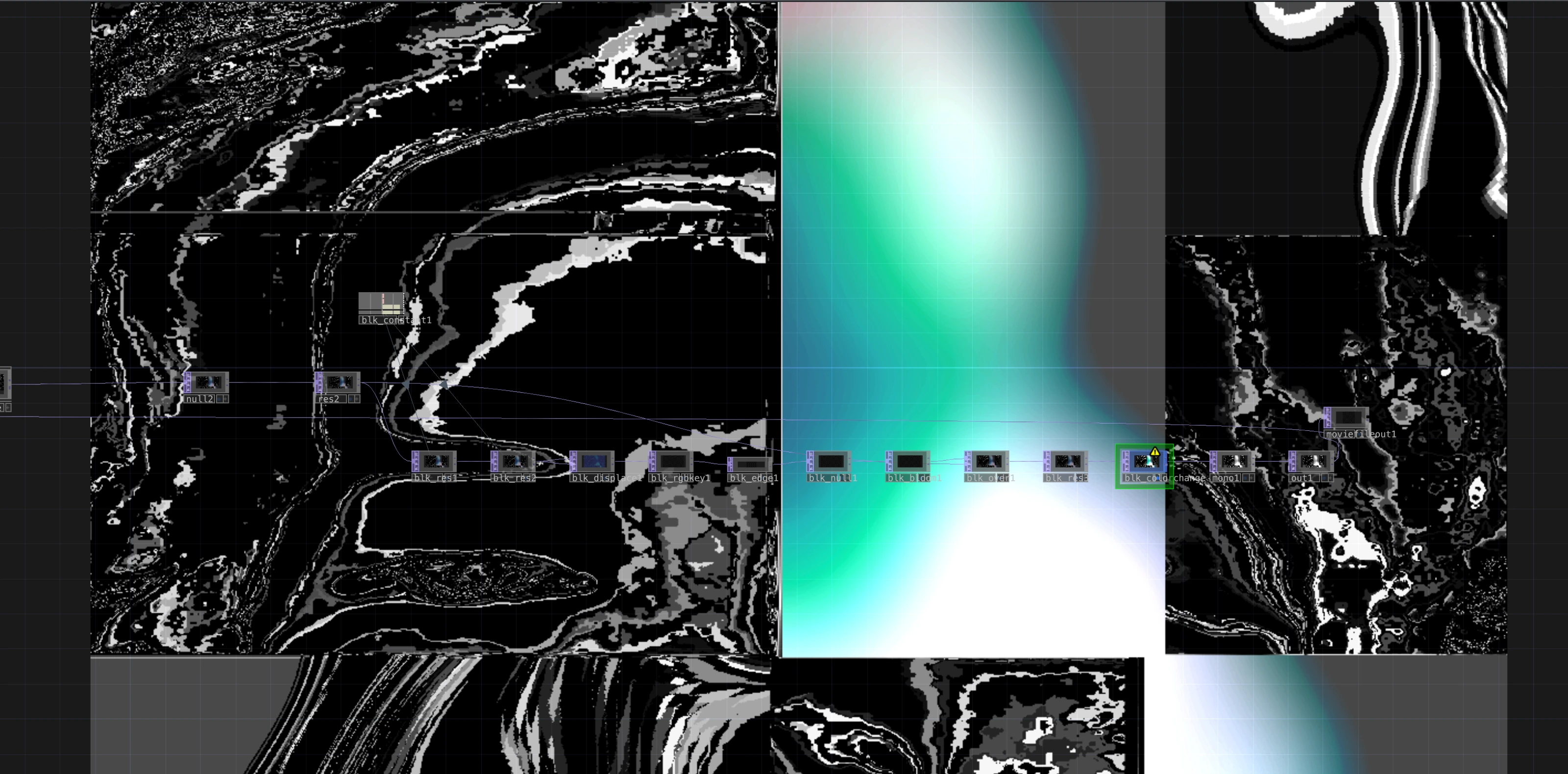

A TouchDesigner .toe file cannot simply be treated as a browser application.
Do not pretend there is an automatic one-to-one converter. Inspect the
TouchDesigner network, identify the three final output graphs, trace their
dependencies, and reimplement their rendering behavior using appropriate web
technologies.

Use the following source material, when available:

- The original .toe project.
- An ASCII-expanded TouchDesigner directory generated using toeexpand.
- External media assets used by the .toe project.
- Reference screenshots and recordings for all three outputs.
- Any GLSL, Python, DAT, JSON, CSV, image, video, font, and geometry files.

FIRST: AUDIT THE SOURCE

1. Inspect the entire repository before changing files.
2. Locate all .toe files, expanded TouchDesigner files, external assets,
   shaders, scripts, and reference media.
3. Identify the three final TouchDesigner screen outputs.
4. Trace every important upstream dependency for each output.
5. Create docs/td-migration-map.md with a table containing:
   - TouchDesigner operator path
   - operator type
   - visual or timing purpose
   - dependent assets
   - web equivalent
   - migration status
   - known fidelity risks
6. Identify missing external assets and list them in
   docs/missing-assets.md.
7. Do not invent missing visual details. Use clearly labeled temporary
   placeholders only when an asset is genuinely unavailable.
8. If only a binary .toe file exists and TouchDesigner/toeexpand is not
   available in the environment, create docs/TOE_EXPORT_INSTRUCTIONS.md,
   continue building the complete display, calibration, networking, and
   routing framework, and isolate temporary screen renderers so they can be
   replaced easily when the expanded source arrives.

Write a concise implementation plan to docs/implementation-plan.md and then
continue implementing the project. Do not stop after writing the plan.

TECHNOLOGY AND PROJECT STRUCTURE

Use:

- Vite
- TypeScript
- React for routing, setup UI, control UI, and diagnostics
- Canvas 2D, SVG, CSS, or WebGL2 depending on the needs of each screen
- Three.js only when 3D rendering or shader-based rendering is genuinely useful
- A small Node.js production server
- WebSocket communication using the ws package
- npm scripts, not a complex monorepo tool

Do not make WebGPU mandatory. The application must run on:

- current Chromium on Windows
- Samsung Internet or Chrome in Samsung DeX
- Safari/WebKit on iPadOS

Use WebGL2 where GPU rendering is required, and provide a clear fallback or
error screen when a required capability is unavailable.

Suggested source structure:

src/
  app/
  screens/
    screen1/
    screen2/
    screen3/
  display/
    AspectStage.tsx
    FullscreenController.ts
    WakeLockController.ts
    CalibrationView.tsx
  sync/
    SyncClient.ts
    Clock.ts
  config/
    screens.ts
  diagnostics/
server/
  index.ts
public/
  assets/
docs/

ONE APP, THREE SCREEN ROUTES

Each screen route must load only its own renderer and required assets.

Use this configuration model:

screen 1:
- designWidth
- designHeight
- orientation
- fitMode
- rotation
- offsetX
- offsetY
- zoom
- maxDevicePixelRatio
- backgroundColor

Repeat the same configuration for screens 2 and 3.

Store the default configuration in src/config/screens.ts.

Allow runtime overrides through URL query parameters:

?fit=contain
?fit=cover
?fit=stretch
?rotate=0
?rotate=90
?rotate=180
?rotate=270
?zoom=1
?offsetX=0
?offsetY=0
?dpr=1.5
?debug=1

Persist calibration overrides in localStorage independently on each playback
device.

ASPECT-RATIO AND EXTERNAL-DISPLAY REQUIREMENTS

This part is critical.

Build a reusable AspectStage component that renders all artwork in a fixed
design coordinate system and maps it to the actual browser viewport.

Use window.innerWidth, window.innerHeight, ResizeObserver, and
window.visualViewport when available.

Never choose layout dimensions based only on the device name or user agent.
The built-in device screen ratio is not the rendering target. The actual
browser viewport on the external monitor is the rendering target.

Implement the following fit modes:

1. contain
   - scale = min(viewportWidth / designWidth,
                 viewportHeight / designHeight)
   - preserve all content
   - allow letterboxing
   - center the stage

2. cover
   - scale = max(viewportWidth / designWidth,
                 viewportHeight / designHeight)
   - fill the entire display
   - allow symmetric cropping
   - center the stage

3. stretch
   -

You are a senior creative-coding engineer, TouchDesigner migration specialist,
and exhibition playback systems engineer.

Your task is to port exactly three final screen outputs into one
production-ready web application that can display five independent visuals on
three separate external monitors.

Do not create five unrelated repositories or three duplicated websites.
Create one maintainable web application with three independent routes:

- /screen/1
- /screen/2
- /screen/3
- /screen/4
- /screen/5


- /control
- /status
- /calibrate/1
- /calibrate/2
- /calibrate/3

The intended exhibition hardware is:

1. LG Gram laptop
   - Runs the local production server.
   - Opens /screen/1 locally.
   - Connects to a TG Sambo TW4510 external monitor through HDMI.

2. iPad
   - Opens /screen/2.
   - Connects to another TG Sambo TW4510 through the appropriate HDMI adapter.
   - The iPad model may support either true external-display mode or only
     display mirroring, so the application must handle both 16:9 and 4:3
     browser viewports.

3. Samsung Galaxy S10e
   - Runs Samsung DeX.
   - Opens /screen/3.
   - Connects through a USB-C HDMI adapter or PD-enabled HDMI hub to another
     TG Sambo TW4510.

The target monitors are Full HD displays. Use a default design coordinate
system of 1920 × 1080 for landscape screens. Allow any individual screen to be
configured as 1080 × 1920 when physically mounted in portrait orientation.

IMPORTANT REALITY

A TouchDesigner .toe file cannot simply be treated as a browser application.
Do not pretend there is an automatic one-to-one converter. Inspect the
TouchDesigner network, identify the three final output graphs, trace their
dependencies, and reimplement their rendering behavior using appropriate web
technologies.

Use the following source material, when available:

- The original .toe project.
- An ASCII-expanded TouchDesigner directory generated using toeexpand.
- External media assets used by the .toe project.
- Reference screenshots and recordings for all three outputs.
- Any GLSL, Python, DAT, JSON, CSV, image, video, font, and geometry files.

FIRST: AUDIT THE SOURCE

1. Inspect the entire repository before changing files.
2. Locate all .toe files, expanded TouchDesigner files, external assets,
   shaders, scripts, and reference media.
3. Identify the three final TouchDesigner screen outputs.
4. Trace every important upstream dependency for each output.
5. Create docs/td-migration-map.md with a table containing:
   - TouchDesigner operator path
   - operator type
   - visual or timing purpose
   - dependent assets
   - web equivalent
   - migration status
   - known fidelity risks
6. Identify missing external assets and list them in
   docs/missing-assets.md.
7. Do not invent missing visual details. Use clearly labeled temporary
   placeholders only when an asset is genuinely unavailable.
8. If only a binary .toe file exists and TouchDesigner/toeexpand is not
   available in the environment, create docs/TOE_EXPORT_INSTRUCTIONS.md,
   continue building the complete display, calibration, networking, and
   routing framework, and isolate temporary screen renderers so they can be
   replaced easily when the expanded source arrives.

Write a concise implementation plan to docs/implementation-plan.md and then
continue implementing the project. Do not stop after writing the plan.

TECHNOLOGY AND PROJECT STRUCTURE

Use:

- Vite
- TypeScript
- React for routing, setup UI, control UI, and diagnostics
- Canvas 2D, SVG, CSS, or WebGL2 depending on the needs of each screen
- Three.js only when 3D rendering or shader-based rendering is genuinely useful
- A small Node.js production server
- WebSocket communication using the ws package
- npm scripts, not a complex monorepo tool

Do not make WebGPU mandatory. The application must run on:

- current Chromium on Windows
- Samsung Internet or Chrome in Samsung DeX
- Safari/WebKit on iPadOS

Use WebGL2 where GPU rendering is required, and provide a clear fallback or
error screen when a required capability is unavailable.

Suggested source structure:

src/
  app/
  screens/
    screen1/
    screen2/
    screen3/
  display/
    AspectStage.tsx
    FullscreenController.ts
    WakeLockController.ts
    CalibrationView.tsx
  sync/
    SyncClient.ts
    Clock.ts
  config/
    screens.ts
  diagnostics/
server/
  index.ts
public/
  assets/
docs/

ONE APP, THREE SCREEN ROUTES

Each screen route must load only its own renderer and required assets.

Use this configuration model:

screen 1:
- designWidth
- designHeight
- orientation
- fitMode
- rotation
- offsetX
- offsetY
- zoom
- maxDevicePixelRatio
- backgroundColor

Repeat the same configuration for screens 2 and 3.

Store the default configuration in src/config/screens.ts.

Allow runtime overrides through URL query parameters:

?fit=contain
?fit=cover
?fit=stretch
?rotate=0
?rotate=90
?rotate=180
?rotate=270
?zoom=1
?offsetX=0
?offsetY=0
?dpr=1.5
?debug=1

Persist calibration overrides in localStorage independently on each playback
device.

ASPECT-RATIO AND EXTERNAL-DISPLAY REQUIREMENTS

This part is critical.

Build a reusable AspectStage component that renders all artwork in a fixed
design coordinate system and maps it to the actual browser viewport.

Use window.innerWidth, window.innerHeight, ResizeObserver, and
window.visualViewport when available.

Never choose layout dimensions based only on the device name or user agent.
The built-in device screen ratio is not the rendering target. The actual
browser viewport on the external monitor is the rendering target.

Implement the following fit modes:

1. contain
   - scale = min(viewportWidth / designWidth,
                 viewportHeight / designHeight)
   - preserve all content
   - allow letterboxing
   - center the stage

2. cover
   - scale = max(viewportWidth / designWidth,
                 viewportHeight / designHeight)
   - fill the entire display
   - allow symmetric cropping
   - center the stage

3. stretch
   - scale
